PET Injection Molding Machine

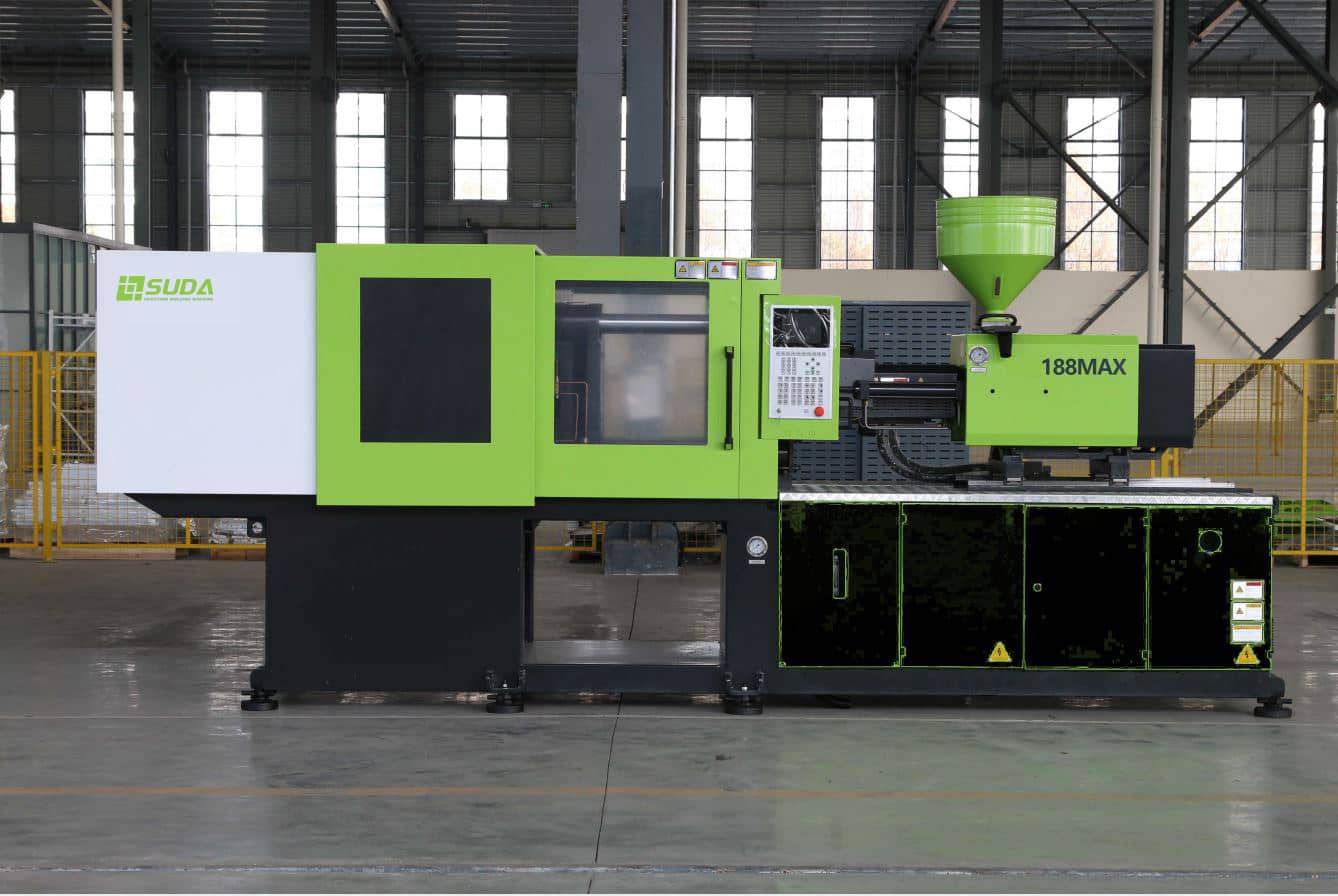

Suda Intelligent PET Preform Injection Molding Machine

Suda, Intelligent PET bottle &  containers production line provider, strives to growing high effectiveness and high energy saving (150Ton - 800Ton Clamping Force) PET preform trim and blowing machines to our clients and the extraordinarily planned PET preform infusion shaping machines is quite possibly the main upgrades.

SUDA PET bottle preform mold features

SUDA pursues the highest mold performance. Produce high-quality preforms, using corrosion-resistant steel plates to optimize preform production. SUDA molds have a long life. The mould design guarantees quick and easy repairs. SUDA moulds are easy to use and regular maintenance work can be done directly on the machine in the shortest possible time. SUDA mold parts are easy and convenient to replace, and different preforms can be produced on the same mold. Rigid mold fittings ensure mold life and minimize maintenance. We can produce PET preform mould, PET tube preform mould, 72 cavity preform mould, 48 cavity preform mould, 32 cavity preform mould, 24 cavity preform mould, 16 cavity preform mould, 12 cavity preform mould, 8 Cavity preform mold, 4 cavity preform mold, 72 cavity preform mold, 48 cavity preform mold, 32 cavity preform mold, 24 cavity preform mold, 16 cavity preform mold, 12 cavity preform mold, 8 cavity pipe Blank mold, 4 cavity tube blank mold.

SUDA currently has three series of PET preform molds, including double-lock pneumatic needle valve tube blank molds. Double lock adjustable eccentric pneumatic needle valve preform mold, common preform mold without gate. The company adopts advanced CAD for mold-aided design. The shape of the preform is optimally stretched according to the final plastic bottle sample to ensure the final plastic molding quality. The double-lock pneumatic needle valve tube blank mold and the double-lock adjustable eccentric pneumatic needle valve preform mold adopt a multi-dimensional taper positioning system to ensure the plastic thickness of the plastic preform is consistent. At the same time, the unique hot runner system of SUDA mold ensures the same pressure and PET flow ratio of each cavity.

PET bottle preform mold classification

1.Five Gallon Preform Mould

2.Mineral water preform mould

3.Oil Preform Mould

4.Beverage Preform Mould

5.Cosmetic Preform Mould

6.Medicine Preform Mould

Suda Plant Integrated Solutions

Our professional team not only provides injection molding machines, injection molds and automation, but also provides integrated services for the overall design and transformation of the plant, construction and operation solutions.

Suda PET injection molding machine mold is widely used in syringe, tube ,beverage, edible oil, food, cosmetics, daily chemical, pharmaceutical and other industries. We provide customized one-stop service, from the preliminary drawing design to the product installation, to the successful trial,until the perfect presentation of the product.

Suda Customized PET Injection Molding Machine

Suda PET Injection Molding Machine Plant strives to offering Fast response and high precision PET Injection Molding Machine for Medical and beverage industries. Our production ability could achieve approximately 160 sets of PET preform mold per year.

With powerful PET Preform mold design capability ,we are able to provide customers with advanced valve gate system and cooling system, cap mold unscrewing ejection system and extrusion blowing mold auto deflashing system.Customized PET Preform mold solution is available as well.

Preform form steel

Preform shape steel: S136, 2316, and so on Preform form center additions and sliders can be titanizing drifting to give better surface completion. In the wake of titanizing, the surface will with brilliant tone. S136 and 2316 steel will be done vacuum extinguishing harding treatment. In the wake of harding treatment, the steel hardness can arrive at 48HRC to 52HRC. P20 steel utilized as the shape base. Concurring client's solicitation, some preform form will utilize amalgam metal to make strip plate to give high productive cooling.

Typically there are three distinctive plastic material can be utilized to create preform: PET, PC, and PP. Because of various plastic material shrinkage rate is extraordinary. So preform shape shrinkage rate ought to be concurring the real plastic material used to deliver the preforms.

PET Preform mold Steel:

PET preform mold base steel:

DIN1.2311 with precision grinding machine with each plate thickness tolerance 0.015mm for a plate size 500*500*40 with HRC32

PET preform mold spare steel:

DIN1.2344 in D-M-E metric dimension standard; all the moving area was inserted with durable parts which is interchangeable, hardness is HRC 48-52

PET preform mold cavity and core steel:S136 stainless steel, tempered with HRC50+/-2

Screw neck slide pieces:

Inserted with prehardened DIN1.2316 with HRC38 to HRC42

PET Preform mold feature

Precision temperature controlling and even heating area for hot manifold. Improved valve gate system with interchangeable and durable melt PET material sealing. Germany heating elements high quality for longest mould lifetime

 Suda PET injection molding machine advantages

 Suda PET injection molding machine has features of energy saving, environment friendly, low noise, precise measurement, with excellent control precision system, Suda provides complex synchronization action, shorten the production cycle,etc.

Compared with the traditional hydraulic injection molding machine, the hydraulic drive system produced by the oil pump motor of the hydraulic injection molding machine is completely abandoned in the power drive system of the all-hydraulic injection molding machine. Instead, the Servo motor is used to drive the machine. The transmission structure adopts the ball screw and synchronous belt.

Industrial Automatic Control System

 With KEBA industrial automatic control system, high-speed response,  precision control, so that the operation is simpler, forming parameters set clear and accurate, improving use efficiency.

Advanced third Generation of Clamping Unit

The third generation of clamping unit is adopted to ensure more precise and stable mode-closing interlocking, and the operation is more stable and reliable. At the same time, the parallelism of the template is optimized to protect the precision of the mold. Increase the service life of equipment and molds.

High-precision clamping mechanism extends the service life of mold 2-3 times. Solid and durable and prevent deformation of the formwork, especially suitable for long 24 hours high speed and high pressure work

High-speed Machine optimized Template Design

Using high speed machine template design principle, and through the finite element software analysis template deformation, the optimized template structure internal stress is small, the force is more uniform.

Proportional Loop Control Technology

Proportional loop control technology, more stable action of opening and closing mold and glue shooting, high accuracy of position repetition.

High Efficiency Servo Power System

The high efficiency servo power system is used to control the speed, position and pressure with high precision.Improved power system provides the equipment with continuous  and stable power output, shortening the molding cycle and improving the quality of products.

Open Human-machine Intelligent Interconnection Control System

Suda adopts Open human-machine intelligent interconnection control system,so that customer's factory is easy to achieve intelligent manufacturing.

Energy saving effect of Suda servo injection molding machine reaches 90% in the production process Under the same actual testing conditions, such as pump displacement parameter setting and raw materials.

Fast production , high precision and powerful scalability

Suda knows that clear products with accurate precision are always highly expected during fast production. Quality components are used for long-term high efficiency work,rugged and requires no constant maintenance. Besides, all Suda injection molding machiens have functions of sensitive mold protection and easy installation.

Diversified configuration corresponding to a variety of products.

Suda injection molding machiens could be customized and manufactured for specific production demands, such as processing mobile phones, computers, smart wear, toys, glasses, stationery, switches, electrical appliances, cosmetic boxes and other plastic products, widely used in medical, electronics, home appliances, packaging, daily necessities and other fields.You can choose to match various types of special screw and components to meet the special requirements of various resins, improving the quality of products and extending the life of equipment. Suda, commited to meeting high performance requirements.

Worldwide Approach and Service

The excellent performance of high quality and efficiency, energy saving and long lasting have been favored by markets.  Our injection molding machiens and automation machineries exported to the United States, Europe, South America, the Middle East, Southeast Asia, Africa and other countries and regions.
